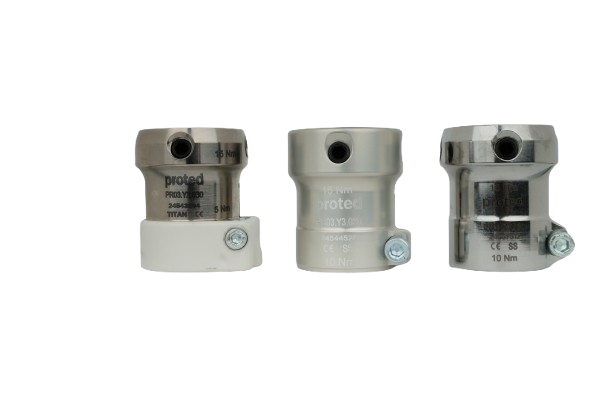

Tube Adapter 34 mm Titanium
Tube Adapter 34 mm Titanium
Diameter: Ø 34 mm
Material: Titanium
Stock Code: PR03.Y2.034
Category: Tube Adapters
| Product Code | Material | Diameter | Weight | Proximal Connection | Distal Connection | System Height | Build Height | Max. Body Weight |
| PR03.Y1.034 | Stainless Steel | Ø 34 mm | ~136 g | Pyramid Receiver | Tube | 47.5 mm | It has a build height between 0 - 17 mm | 125 kg |
| PR03.Y2.034 | Titanium | Ø 34 mm | ~77 g | Pyramid Receiver | Tube | 47.5 mm | It has a build height between 0 - 17 mm | 125 kg |
| PR03.Y3.034 | Aluminium | Ø 34 mm | ~65 g | Pyramid Receiver | Tube | 47.5 mm | It has a build height between 0 - 17 mm | 100 kg |
24 months limited warranty.
Proted operates a quality management system that meets the requirements of ISO 13485 and 9001. Products are CE-marked and conform to standards and other normative documents outlined in the EC (CE) Declaration of Conformity
