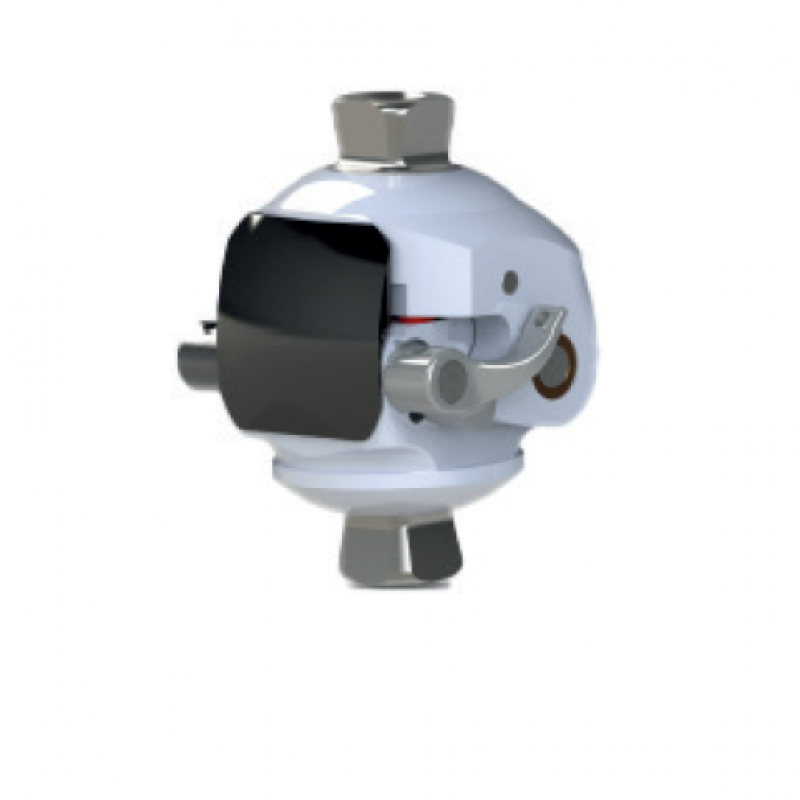

SINGLE AXIS KNEE JOINT with LOCK

Single Axis Knee Joint with integrated lock mechanism which secures the knee joint in extension, providing stability, comfort and secure walking for the prosthetic limb user .

SINGLE AXIS KNEE JOINT with LOCK

Single Axis Knee Joint with integrated lock mechanism which secures the knee joint in extension, providing stability, comfort and secure walking for the prosthetic limb user .

Stock Code: PR04.YK.100

Category: MONOCENTRIC KNEE JOINT

-
+
Overall fitted height  111 mm
System height:  82 mm



24 months limited warranty.
ISO 13485 and 9001.
EC (CE) Declaration of Conformity.

Locking occurs automatically at full extension but can be released using the lock cable.

  • Automatic locking

  • During rehabilitation or mobility classes 1

  • Maximum body weight 100 kg

This is especially important for uncertain prosthetic wearers. As soon as the user with the prosthetic leg takes a step and puts weight on the knee joint, the brake comes into action and the knee joint is blocked.


Recommended for transfemoral amputees with mobility grade 1.

  • Knee flexion angle up to 120°
  • Adjustable flexion and extension
    dampening
