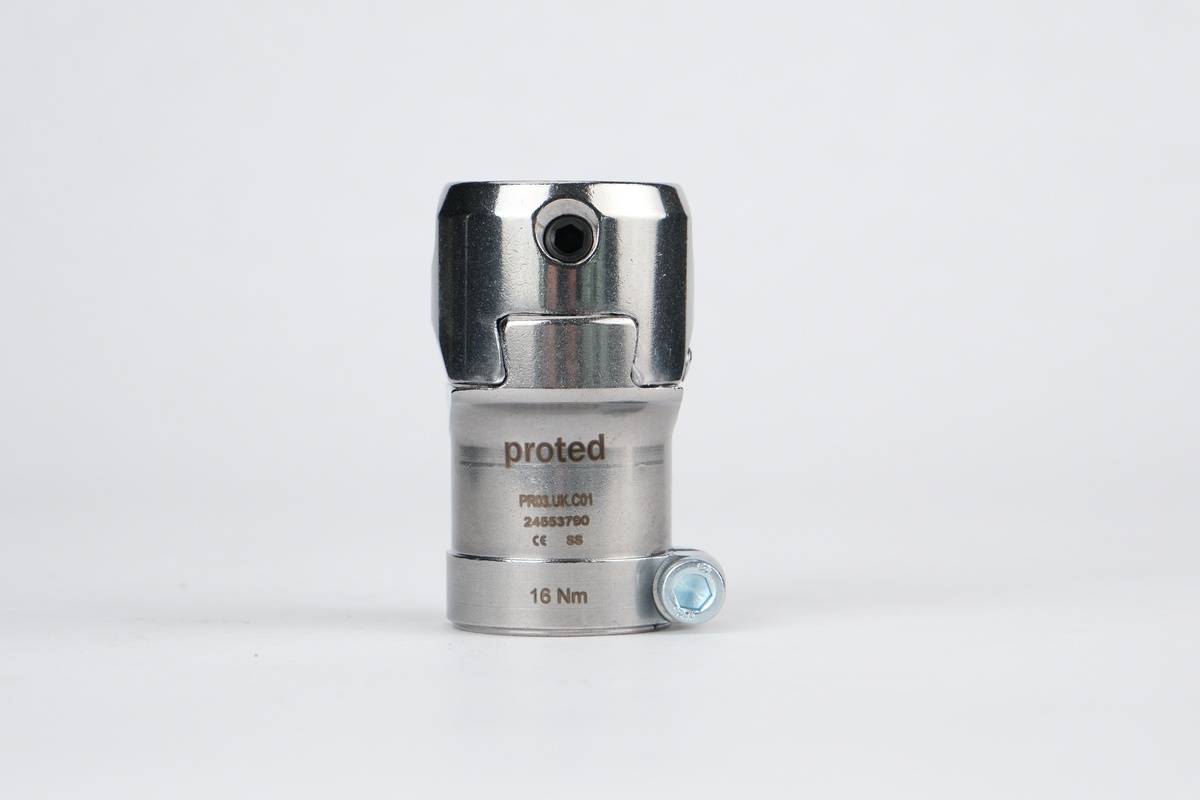

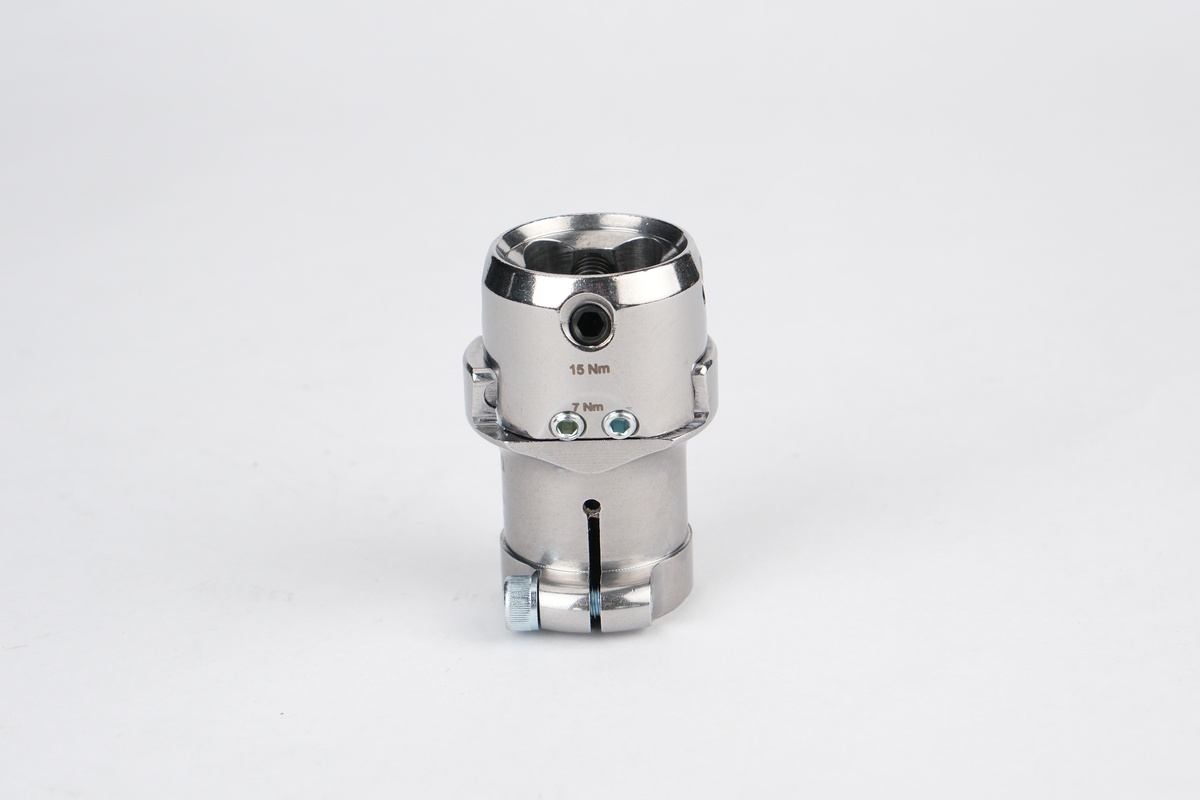

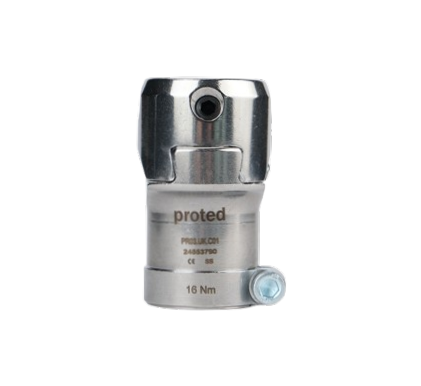

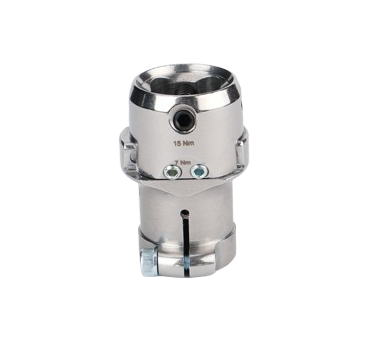

Tube adapters with sliding heads used to connect lower extremity modular prosthetic parts.
Tube adapters with sliding heads used to connect lower extremity modular prosthetic parts.
Stock Code: PR03.UK.C01
Category: Tube Adapters
| Product Code | Material | Diameter | Weight | Proximal Connection | Distal Connection | System Height | Build Height | Max. Body Weight |
| PR03.UK.C01 | Stainless Steel | Ø 30 mm | ~291 g | Pyramid Receiver | Tube | 67 mm | It has a build height between 18.2 - 39.5 mm | 125 kg |
| PR03.UK.T01 | Titanium | Ø 30 mm | ~182 g | Pyramid Receiver | Tube | 67 mm | It has a build height between 18.2 - 39.5 mm | 125 kg |
| PR03.UK.A01 | Aluminium | Ø 30 mm | ~121 g | Pyramid Receiver | Tube | 67 mm | It has a build height between 18.2 - 39.5 mm | 100 kg |
24 months limited warranty.
Proted operates a quality management system that meets the requirements of ISO 13485 and 9001. Products are CE-marked and conform to standards and other normative documents outlined in the EC (CE) Declaration of Conformity .
